Z41Y美标铸钢闸阀-工洲阀门台湾品质

产品名称：美标铸钢闸阀产品型号：Z41Y产品口径：DN50-1200产品压力：0.6~10.0Mpa产品材质：铸钢、不锈钢、合金钢等产品概括：生产标准：国家标准GB、机械标准JB、化工标准HG、美标API、ANSI、德标DIN、日本JIS、JPI、英标BS生产。阀体材质：铜、铸铁、铸钢、碳钢、WCB、WC6、WC9、20#、25#、锻钢、A105、F11、F22、不锈钢、304、304L、316、316L、铬钼钢、低温钢、钛合金钢等。工作压力1.0Mpa-50.0Mpa。工作温度：-196℃-650℃。连接方式：内螺纹、外螺纹、法兰、焊接、对焊、承插焊、卡套、卡箍。驱动方式：手动、气动、液动、电动。 产品详细信息适用标准
钢制闸阀，API600/API 6D
钢制闸阀，ISO 10434/ISO 14313
钢制阀门，ASME B16.34
结构长度，ASME B 16.10
端法兰， ASME B 16.5
对焊端，ASME B 16.25
测试和实验，API 598/API 6D

设计说明
全通设计
明杆
栓接阀盖
刚性或弹性楔型闸板
可更换阀座
锻造T型头阀杆
升降式或非升降式手轮
法兰或对焊端
多种操作方式

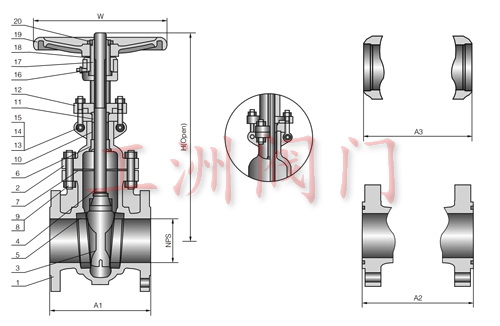

NO. Part Name ASTM Material
Carbon steel 1.25Cr-0.5Mo 2.25Cr-1Mo 304 Type 316 Type 304L Type 316L Type 20Alloy
1
Body A216 WCB A217 WC6 A217 WC9 A351 CF8 A351 CF8M A351 CF3 A351 CF3M A351 CN7M
2 Bonnet A216 WCB A217 WC6 A217 Wc9 A351 CF8 A351 CF8M A351 CF3 A351 CF3M A351 CN7M
3 Wedge
WCB+13Cr*1 A217 WC6+HF A217 WC6+HF A351 CF8 A351 CF8M A351 CF3 A351 CF3M A351 CN7M
4 Stem A182 F6a A182 F11 A182 F22 A182 F304 A182 F316 A182 F304L A182 F316L 20-Alloy
5 Seat Ring A105+13Cr*1 A182 F11+HF′ A182 F22+HF′ NA
6 Back Seat A276 410 A276 410 A276 410 NA
7A Bonnet Gasket 304+graphite 304+graphite 304+graphite 304+graphite 316+graphite 304L+graphite 316L+graphite 316+graphite
7B Ring Gasket Soft steel A182 F304 A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L 20-Alloy
8 Bonnet bolt A193 B7 A193 B7 A193 B16 A193 B8 A193 B8M A193 B8 A193 B8M A193 B8M
9 Bonnet Nut A194 2H A194 7 A194 7 A194 8 A194 8M A194 8 A194 8M A194 8M
10 Packing Graphit Graphite Graphite Graphite *2 Graphite *2 Graphite *2 Graphite *2 Graphite *2
11 Gland A276 410 A276 410 A276 410 A276 304 A276 316 A276 304L A276 316L 20-Alloy
12 Gland Flange A216 WCB A216 WCB A216 WCB A351 CF8 A351 CF8 A351 CF8 A351 CF8 A351 CF8
13 Eyebolt Carbon steel A193 B7 A193 B7 A193 B8 A193 B8 A193 B8 A193 B8 A193 B8
14 Eyebolt Nut Carbon steel A194 2H A194 2H A194 8 A194 8 A194 8 A194 8 A194 8
15 Eyebolt Pin A276 410 A276 410 A276 410 A276 304 A276 304 A276 304 A276 304 A276 304
16 Greas Fitting Commercial Commercial Commercial
17 Stem Nut Bronze *3 Bronze Bronze
18 Jam Nut Carbon steel Stainless steel Stainless steel
19 Hand Wheel Malleable iron Malleable iron Malleable iron
20 Wheel Nut Carbon steel Carbon steel+Zn Carbon steel+Zn
*1 PN≥600CLASS sealing Face will be HF
*2 PTFE Optional
*3 Ductile Ni-Resist iron Optional
NA Integral with vessell
Main Outline Dimensions & Weight Class 150/10K
VALVE SIZE in 2 2.5 3 4 6 8 10 12 14 16 18 20 24 28 30 36 40 42 48 52
mm 50 6.5 80 100 150 200 250 300 350 400 450 500 600 700 750 900 1000 1050 1200 300
A1 in 7.0 7.5 8.0 9.0 10.5 11.5 13.0 14.0 15.0 16.0 17.0 18.0 20.0 24.0 24.0 28.0 30.0 31.0 34.0 36.0
mm 178 190 203 229 267 292 330 356 381 406 432 457 508 610 610 711 762 813 864 914
A3 in 85 9.5 11.12 120 15.87 16.5 18.0 19.75 22.5 240 26.0 280 32.0 36.0 36.0 40.0 42.0 43.0 46.0 54
mm 216 241 283 305 403 419 457 502 572 610 660 711 813 914 914 1016 1067 1092 1168 1372
H in 15.4 16.7 181 22.8 30.6 38.4 46.4 54.6 60.0 68.7 79.1 91.7 1096 127.4 134.5 161.8 183.9 174.4 217.5 227
mm 390 425 461 580 776 976 1178 1387 1523 1745 2010 2330 2784 3236 3417 4109 4670 4430 5525 5766
W in 7.9 7.9 7.9 9.8 11.8 14.0 17.7 17.7 19.7 22.0 13.8 17.7 17.7 22.0 220 27.9 31.5 315 35.4 35.4
mm 200 200 200 250 300 355 450 450 500 560 350 450 450 560 560 710 800 800 900 900
WEGHT RF in 48.5 55.1 66.2 99.2 187 295.5 445 639 816 1177 1475 1786 3153 4557 4827 7856 10370 10143 15677 18742
mm 22 25 30 45 85 134 202 290 370 534 669 810 1430 2067 2189 3563 4703 4600 7110 8500
BW in 44.1 46.3 61.7 92.6 161 244 399 584 750 111 1365 1697 3336 4756 4981 8011 10436 10198 15545 18853
mm 20 21 28 42 73 111 181 265 340 504 619 770 1513 2157 2259 3633 4733 4625 7050 8550
Main Outline Dimensions & Weight Class 300/20K
VALVE
SIZE in 2 2.5 3 4 6 8 10 12 14 16 18 20 24 28 30 36 40 42 48
mm 50 65 80 100 150 200 250 300 350 400 450 500 600 700 750 900 1000 1050 1200
A1&A3 in 8.5 95 11.12 120 15.88 16.5 180 19.75 30.0 33.0 36.0 39.0 45.0 53.0 55.0 68.0 760 780 87.2
mm 216 241 283 305 403 419 457 502 762 838 914 991 1143 1346 1397 1727 1930 1981 2215
A2 in 9.12 10.12 11.75 1262 16.5 17.12 18.62 20.37 30.62 33.62 36.62 39.75 45.88 54.0 56.0 69.12 - - -
mm 232 257 298 321 419 435 473 518 778 854 930 1010 1165 1372 1422 1756 - - -
H in 162 17.7 19.0 23.7 32.0 40.2 48.8 56.8 66.1 78.4 85.9 93.5 112.6 130.0 148.5 169.8 1886 198.1 2174
mm 412 450 483 601 813 1020 1239 1443 1679 1993 2181 2376 2860 3302 3772 4312 4791 5032 5522
W in 7.9 7.9 8.8 9.8 140 15.7 17.7 19.7 17.7 17.7 22.0 22.0 27.9 35.4 35.4 30.0 30.0 30.0 30.0
mm 200 200 224 250 355 400 450 500 450 450 560 560 710 900 900 760 760 760 760
WEIGHT RF in 63.9 88.2 105.8 1632 313.1 485.1 721.0 1094 1530 2170 2880 3409 5204 8070.3 9591.6 15104.3 18654.3 20947.5 27342
mm 29 40 48 74 142 220 327 496 694 984 1306 1546 2360 3660 4350 6850 8460 9500 12400
BW in 52.9 77.2 81.6 141.1 269.0 379.2 511.6 862 1420 1839 2317 2703 4212 6637 7629.3 11003 13582.8 14994 19845
mm 24 35 37 64 122 172 232 391 644 834 1051 1226 1910 3010 3460 4990 6160 6800 9000
Main Outline Dimensions & Weight Class 600/40K
VALVE
SIZE in 2 2.5 3 4 6 8 10 12 14 16 18 20 24 28 30 36 40 42
mm 50 65 80 100 150 200 250 300 350 400 450 500 600 700 750 900 100 1050
A1&A3 in 11.5 13.0 140 17.0 22.0 260 31.0 330 35.0 39.0 43.0 47.0 55.0 610 65.0 82.0 94.0 98.0
mm 292 330 356 432 556 660 787 838 889 991 1092 1194 1397 1594 1651 2083 2387 2489
A2 in 11.62 13.12 14.12 17.12 22.12 26.12 31.12 33.12 35.12 39.12 43.12 47.25 55.38 615 65.5 82.62 - -
mm 295 333 359 435 562 664 791 841 892 994 1095 1200 1406 1562 1663 2098 - -
H in 18.5 19.5 22.1 26.7 37.2 43.7 52.1 65.9 72.1 82.9 98.0 104.8 116.9 140.2 152.8 179.5 207.6 240.0
mm 471 495 561 677 944 1110 1323 1675 1832 210.6 2489 2662 2970 3562 3880 4560 5273 6098
W in 8.8 8.8 9.8 11.8 17.7 19.7 24.8 22.0 22.0 27.9 27.9 315 35.4 30.0 30.0 30.0 30.0 30.0
mm 2224 224 250 300 450 500 630 560 560 710 710 800 900 760 760 760 760 760
WEIGHT RF in 94.8 132.3 1544 295.5 628 988 1499 2355 2836 4059 5700 6853 10337 133406 15313.7 21476.7 232628 241448
mm 43 60 70 134 285 448 680 1068 1286 1841 2585 3108 4688 6050 6946 9740 10550 10950
BW in 61.7 99.2 132.3 229.3 452 690 1180 2145 2571 332 4741 5640 8595 109809 12590.6 17948.7 18830.7 19337.9
mm 28 45 60 104 205 313 535 973 1166 1511 2150 2558 3898 4980 5710 8140 8540 8770

Main Outline Dimensions & Weight Class 150/10K
VALVE SIZE in 2 2.5 3 4 6 8 10 12 14 16 18 20 24 28 30 36 40 42 48 52
mm 50 6.5 80 100 150 200 250 300 350 400 450 500 600 700 750 900 1000 1050 1200 300
A1 in 7.0 7.5 8.0 9.0 10.5 11.5 13.0 14.0 15.0 16.0 17.0 18.0 20.0 24.0 24.0 28.0 30.0 31.0 34.0 36.0
mm 178 190 203 229 267 292 330 356 381 406 432 457 508 610 610 711 762 813 864 914
A3 in 85 9.5 11.12 120 15.87 16.5 18.0 19.75 22.5 240 26.0 280 32.0 36.0 36.0 40.0 42.0 43.0 46.0 54
mm 216 241 283 305 403 419 457 502 572 610 660 711 813 914 914 1016 1067 1092 1168 1372
H in 15.4 16.7 181 22.8 30.6 38.4 46.4 54.6 60.0 68.7 79.1 91.7 1096 127.4 134.5 161.8 183.9 174.4 217.5 227
mm 390 425 461 580 776 976 1178 1387 1523 1745 2010 2330 2784 3236 3417 4109 4670 4430 5525 5766
W in 7.9 7.9 7.9 9.8 11.8 14.0 17.7 17.7 19.7 22.0 13.8 17.7 17.7 22.0 220 27.9 31.5 315 35.4 35.4
mm 200 200 200 250 300 355 450 450 500 560 350 450 450 560 560 710 800 800 900 900
WEGHT RF in 48.5 55.1 66.2 99.2 187 295.5 445 639 816 1177 1475 1786 3153 4557 4827 7856 10370 10143 15677 18742
mm 22 25 30 45 85 134 202 290 370 534 669 810 1430 2067 2189 3563 4703 4600 7110 8500
BW in 44.1 46.3 61.7 92.6 161 244 399 584 750 111 1365 1697 3336 4756 4981 8011 10436 10198 15545 18853
mm 20 21 28 42 73 111 181 265 340 504 619 770 1513 2157 2259 3633 4733 4625 7050 8550
Main Outline Dimensions & Weight Class 300/20K
VALVE
SIZE in 2 2.5 3 4 6 8 10 12 14 16 18 20 24 28 30 36 40 42 48
mm 50 65 80 100 150 200 250 300 350 400 450 500 600 700 750 900 1000 1050 1200
A1&A3 in 8.5 95 11.12 120 15.88 16.5 180 19.75 30.0 33.0 36.0 39.0 45.0 53.0 55.0 68.0 760 780 87.2
mm 216 241 283 305 403 419 457 502 762 838 914 991 1143 1346 1397 1727 1930 1981 2215
A2 in 9.12 10.12 11.75 1262 16.5 17.12 18.62 20.37 30.62 33.62 36.62 39.75 45.88 54.0 56.0 69.12 - - -
mm 232 257 298 321 419 435 473 518 778 854 930 1010 1165 1372 1422 1756 - - -
H in 162 17.7 19.0 23.7 32.0 40.2 48.8 56.8 66.1 78.4 85.9 93.5 112.6 130.0 148.5 169.8 1886 198.1 2174
mm 412 450 483 601 813 1020 1239 1443 1679 1993 2181 2376 2860 3302 3772 4312 4791 5032 5522
W in 7.9 7.9 8.8 9.8 140 15.7 17.7 19.7 17.7 17.7 22.0 22.0 27.9 35.4 35.4 30.0 30.0 30.0 30.0
mm 200 200 224 250 355 400 450 500 450 450 560 560 710 900 900 760 760 760 760
WEIGHT RF in 63.9 88.2 105.8 1632 313.1 485.1 721.0 1094 1530 2170 2880 3409 5204 8070.3 9591.6 15104.3 18654.3 20947.5 27342
mm 29 40 48 74 142 220 327 496 694 984 1306 1546 2360 3660 4350 6850 8460 9500 12400
BW in 52.9 77.2 81.6 141.1 269.0 379.2 511.6 862 1420 1839 2317 2703 4212 6637 7629.3 11003 13582.8 14994 19845
mm 24 35 37 64 122 172 232 391 644 834 1051 1226 1910 3010 3460 4990 6160 6800 9000
Main Outline Dimensions & Weight Class 600/40K
VALVE
SIZE in 2 2.5 3 4 6 8 10 12 14 16 18 20 24 28 30 36 40 42
mm 50 65 80 100 150 200 250 300 350 400 450 500 600 700 750 900 100 1050
A1&A3 in 11.5 13.0 140 17.0 22.0 260 31.0 330 35.0 39.0 43.0 47.0 55.0 610 65.0 82.0 94.0 98.0
mm 292 330 356 432 556 660 787 838 889 991 1092 1194 1397 1594 1651 2083 2387 2489
A2 in 11.62 13.12 14.12 17.12 22.12 26.12 31.12 33.12 35.12 39.12 43.12 47.25 55.38 615 65.5 82.62 - -
mm 295 333 359 435 562 664 791 841 892 994 1095 1200 1406 1562 1663 2098 - -
H in 18.5 19.5 22.1 26.7 37.2 43.7 52.1 65.9 72.1 82.9 98.0 104.8 116.9 140.2 152.8 179.5 207.6 240.0
mm 471 495 561 677 944 1110 1323 1675 1832 210.6 2489 2662 2970 3562 3880 4560 5273 6098
W in 8.8 8.8 9.8 11.8 17.7 19.7 24.8 22.0 22.0 27.9 27.9 315 35.4 30.0 30.0 30.0 30.0 30.0
mm 2224 224 250 300 450 500 630 560 560 710 710 800 900 760 760 760 760 760
WEIGHT RF in 94.8 132.3 1544 295.5 628 988 1499 2355 2836 4059 5700 6853 10337 133406 15313.7 21476.7 232628 241448
mm 43 60 70 134 285 448 680 1068 1286 1841 2585 3108 4688 6050 6946 9740 10550 10950
BW in 61.7 99.2 132.3 229.3 452 690 1180 2145 2571 332 4741 5640 8595 109809 12590.6 17948.7 18830.7 19337.9
mm 28 45 60 104 205 313 535 973 1166 1511 2150 2558 3898 4980 5710 8140 8540 8770

NO.	Part Name	ASTM Material
NO.	Part Name	Carbon steel	1.25Cr-0.5Mo	2.25Cr-1Mo	304 Type	316 Type	304L Type	316L Type	20Alloy
1	Body	A216 WCB	A217 WC6	A217 WC9	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	A351 CN7M
2	Bonnet	A216 WCB	A217 WC6	A217 Wc9	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	A351 CN7M
3	Wedge	WCB+13Cr*1	A217 WC6+HF	A217 WC6+HF	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	A351 CN7M
4	Stem	A182 F6a	A182 F11	A182 F22	A182 F304	A182 F316	A182 F304L	A182 F316L	20-Alloy
5	Seat Ring	A105+13Cr*1	A182 F11+HF′	A182 F22+HF′					NA
6	Back Seat	A276 410	A276 410	A276 410					NA
7A	Bonnet Gasket	304+graphite	304+graphite	304+graphite	304+graphite	316+graphite	304L+graphite	316L+graphite	316+graphite
7B	Ring Gasket	Soft steel	A182 F304	A182 F304	A182 F304	A182 F316	A182 F304L	A182 F316L	20-Alloy
8	Bonnet bolt	A193 B7	A193 B7	A193 B16	A193 B8	A193 B8M	A193 B8	A193 B8M	A193 B8M
9	Bonnet Nut	A194 2H	A194 7	A194 7	A194 8	A194 8M	A194 8	A194 8M	A194 8M
10	Packing	Graphit	Graphite	Graphite	Graphite *2	Graphite *2	Graphite *2	Graphite *2	Graphite *2
11	Gland	A276 410	A276 410	A276 410	A276 304	A276 316	A276 304L	A276 316L	20-Alloy
12	Gland Flange	A216 WCB	A216 WCB	A216 WCB	A351 CF8	A351 CF8	A351 CF8	A351 CF8	A351 CF8
13	Eyebolt	Carbon steel	A193 B7	A193 B7	A193 B8	A193 B8	A193 B8	A193 B8	A193 B8
14	Eyebolt Nut	Carbon steel	A194 2H	A194 2H	A194 8	A194 8	A194 8	A194 8	A194 8
15	Eyebolt Pin	A276 410	A276 410	A276 410	A276 304	A276 304	A276 304	A276 304	A276 304
16	Greas Fitting	Commercial			Commercial				Commercial
17	Stem Nut	Bronze *3			Bronze				Bronze
18	Jam Nut	Carbon steel			Stainless steel				Stainless steel
19	Hand Wheel	Malleable iron			Malleable iron				Malleable iron
20	Wheel Nut	Carbon steel			Carbon steel+Zn				Carbon steel+Zn
*1	PN≥600CLASS sealing Face will be HF
*2	PTFE Optional
*3	Ductile Ni-Resist iron Optional
NA	Integral with vessell

VALVE SIZE		in	2	2.5	3	4	6	8	10	12	14	16	18	20	24	28	30	36	40	42	48	52
VALVE SIZE		mm	50	6.5	80	100	150	200	250	300	350	400	450	500	600	700	750	900	1000	1050	1200	300
A1		in	7.0	7.5	8.0	9.0	10.5	11.5	13.0	14.0	15.0	16.0	17.0	18.0	20.0	24.0	24.0	28.0	30.0	31.0	34.0	36.0
A1		mm	178	190	203	229	267	292	330	356	381	406	432	457	508	610	610	711	762	813	864	914
A3		in	85	9.5	11.12	120	15.87	16.5	18.0	19.75	22.5	240	26.0	280	32.0	36.0	36.0	40.0	42.0	43.0	46.0	54
A3		mm	216	241	283	305	403	419	457	502	572	610	660	711	813	914	914	1016	1067	1092	1168	1372
H		in	15.4	16.7	181	22.8	30.6	38.4	46.4	54.6	60.0	68.7	79.1	91.7	1096	127.4	134.5	161.8	183.9	174.4	217.5	227
H		mm	390	425	461	580	776	976	1178	1387	1523	1745	2010	2330	2784	3236	3417	4109	4670	4430	5525	5766
W		in	7.9	7.9	7.9	9.8	11.8	14.0	17.7	17.7	19.7	22.0	13.8	17.7	17.7	22.0	220	27.9	31.5	315	35.4	35.4
W		mm	200	200	200	250	300	355	450	450	500	560	350	450	450	560	560	710	800	800	900	900
WEGHT	RF	in	48.5	55.1	66.2	99.2	187	295.5	445	639	816	1177	1475	1786	3153	4557	4827	7856	10370	10143	15677	18742
	RF	mm	22	25	30	45	85	134	202	290	370	534	669	810	1430	2067	2189	3563	4703	4600	7110	8500
	BW	in	44.1	46.3	61.7	92.6	161	244	399	584	750	111	1365	1697	3336	4756	4981	8011	10436	10198	15545	18853
	BW	mm	20	21	28	42	73	111	181	265	340	504	619	770	1513	2157	2259	3633	4733	4625	7050	8550

VALVE SIZE		in	2	2.5	3	4	6	8	10	12	14	16	18	20	24	28	30	36	40	42	48
VALVE SIZE		mm	50	65	80	100	150	200	250	300	350	400	450	500	600	700	750	900	1000	1050	1200
A1&A3		in	8.5	95	11.12	120	15.88	16.5	180	19.75	30.0	33.0	36.0	39.0	45.0	53.0	55.0	68.0	760	780	87.2
A1&A3		mm	216	241	283	305	403	419	457	502	762	838	914	991	1143	1346	1397	1727	1930	1981	2215
A2		in	9.12	10.12	11.75	1262	16.5	17.12	18.62	20.37	30.62	33.62	36.62	39.75	45.88	54.0	56.0	69.12	-	-	-
A2		mm	232	257	298	321	419	435	473	518	778	854	930	1010	1165	1372	1422	1756	-	-	-
H		in	162	17.7	19.0	23.7	32.0	40.2	48.8	56.8	66.1	78.4	85.9	93.5	112.6	130.0	148.5	169.8	1886	198.1	2174
H		mm	412	450	483	601	813	1020	1239	1443	1679	1993	2181	2376	2860	3302	3772	4312	4791	5032	5522
W		in	7.9	7.9	8.8	9.8	140	15.7	17.7	19.7	17.7	17.7	22.0	22.0	27.9	35.4	35.4	30.0	30.0	30.0	30.0
W		mm	200	200	224	250	355	400	450	500	450	450	560	560	710	900	900	760	760	760	760
WEIGHT	RF	in	63.9	88.2	105.8	1632	313.1	485.1	721.0	1094	1530	2170	2880	3409	5204	8070.3	9591.6	15104.3	18654.3	20947.5	27342
	RF	mm	29	40	48	74	142	220	327	496	694	984	1306	1546	2360	3660	4350	6850	8460	9500	12400
	BW	in	52.9	77.2	81.6	141.1	269.0	379.2	511.6	862	1420	1839	2317	2703	4212	6637	7629.3	11003	13582.8	14994	19845
	BW	mm	24	35	37	64	122	172	232	391	644	834	1051	1226	1910	3010	3460	4990	6160	6800	9000

上海工洲阀门

Z41Y美标铸钢闸阀
